Rof Electro Optic Modulator semiconductor laser Source SLD Broadband Light Source SLD Laser module
Feature
A variety of wavelengths are available from 800 to 1600nm
Low coherence
High power stability
It has excellent spectral flatness
Module, desktop optional
Application
Optical fiber sensing system
Passive device fabrication and testing
Optical measuring instrument
Parameters
|
Parameter |
Typical |
Unit |
||||
|
Central wavelength |
850 |
1310 |
1550 |
1250~1650 |
nm |
|
|
FWHM spectral width |
>30 |
>40 |
>45 |
>400 |
nm |
|
|
Output optical power |
5 |
10 |
10 |
>5 |
mW |
|
|
Spectral wave |
<0.2 |
<0.2 |
<0.2 |
<0.2 |
dB |
|
|
Spectral stability@15 min |
≤±0.05 |
dB |
||||
|
Short-term stability@15 min |
≤±0.01 |
dB |
||||
|
Long-term stability@8hour |
≤±0.03 |
dB |
||||
|
Operating mode |
Continuous 、Internal modulation、external modulation |
|||||
|
Specification |
Desktop |
Module |
||||
|
Dimensions L x W x H |
320×220×90 mm |
90×70×18mm |
||||
|
Power supply |
AC 220V ± 10％ 30W |
DC +5V GND |
||||
|
Output optical fiber |
SMF/PMF |
|||||
|
Optical light connector |
FC/PC FC/APC or user specified |
|||||
Curve

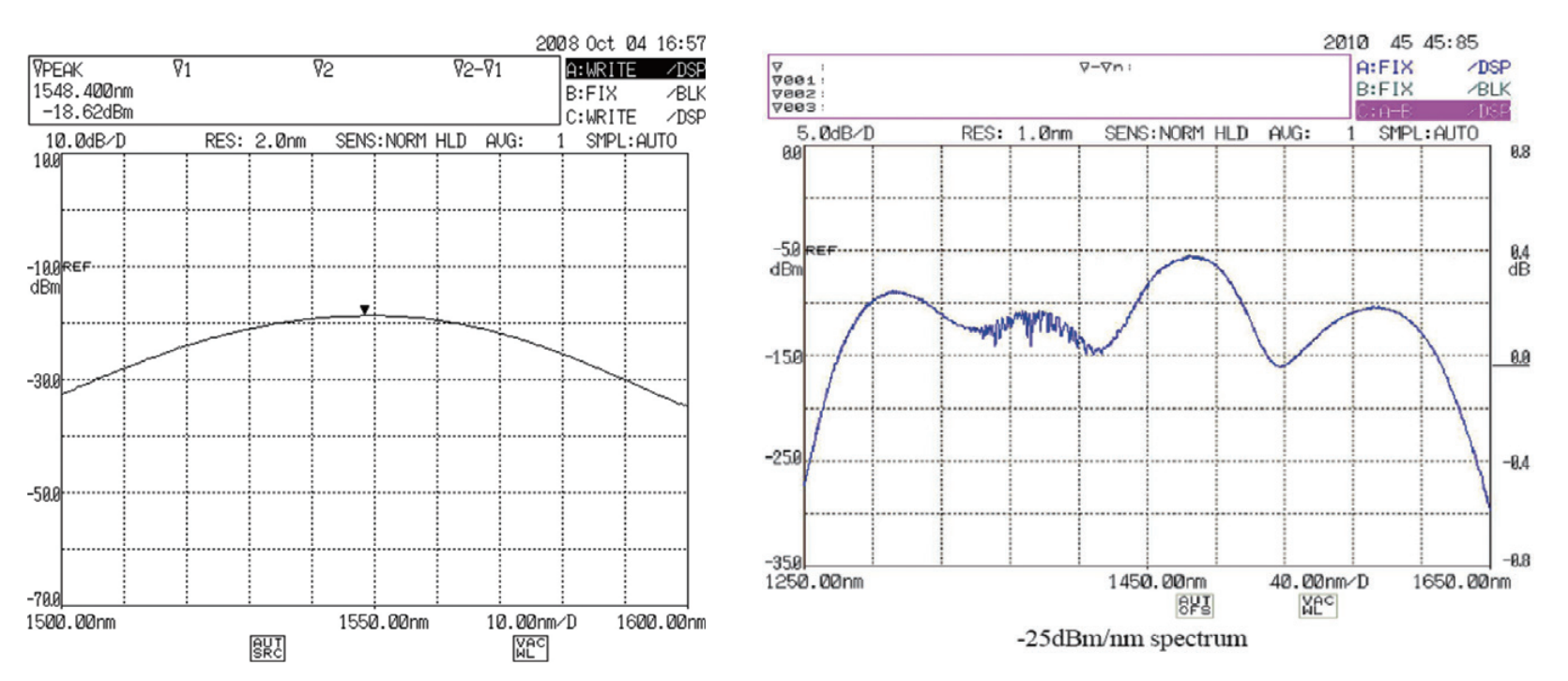

1550nm spectrogram 1250-1650nm ultra wideband spectrum
