ROF-BPR Series Mini Balanced Photodetector High Sensitivity Photodetector Si Photodetector
Feature
Typical wavelength: 850/1064/1310/1550nm
3dB bandwidth: 10MHz
High common-mode rejection ratio: > 25dB
High gain: 150×103V/W
Application
⚫Heterodyne detection
⚫Optical delay measurement
⚫Optical fiber sensing system
⚫（OCT）
Parameters
Performance parameters
| Model number |
ROF-BPR-10M-A-FC-AC |
ROF-BPR-10M-B-FC-AC |
| Spectral response range |
850~1650nm |
400~1100nm |
| Typical wavelength |
1310nm/1550nm |
850nm |
| responsivity |
0.95A/W@1550nm |
0.5A/W@850nm |
| 3dB bandwidth |
10K-10MHz |
10K-10MHz |
| Common-mode rejection ratio CMRR |
>25dB |
>25dB |
| Gain @RF output |
300×103V/W |
150×103V/W |
| Noise voltage (RMS) |
＜15mVRMS |
＜15mVRMS |
| Saturated Optical Power (CW) |
60mW |
110mW |
| Maximum output amplitude |
12Vpp |
12Vpp |
| Damaged optical power |
10mW |
|
| Operating temperature range |
-20~+70 ℃ |
|
| Operating voltage |
DC 12V |
|
| Working current |
40mA |
|
| Input connector |
FC |
|
| Output connector |
SMA |
|
| Output impedance |
50 ohms |
|
| Output coupling mode |
AC coupling (DC optional) |
|
| Overall dimensions (mm) |
47mm×40mm×23mm |
|

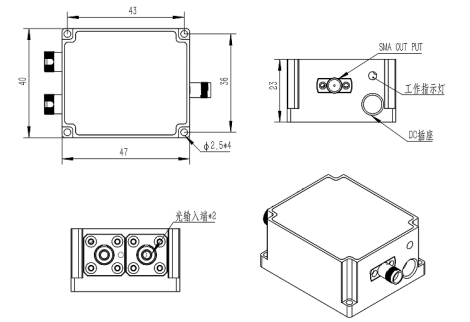

Dimensions（mm）
Information
Ordering information
|
ROF |
XXX |
XX |
X |
XX |
XX |
X |
| BPR-- Fixed gain balanced detector
GBPR-- Gain adjustable balance detector |
-3dB bandwidth：
10M---10MHz 80M---80MHz 200M---200MHz 350M---350MHz 400M---400MHz 1G---1GHz 1.6G---1.6GHz
|
Operating wavelength：
A---850~1650nm (1550nm test) B---320~1000nm (850nm test) A1---900~1400nm (1064nm test） A2---1200~1700nm (1310nm or 1550nm test) |
Input type:
FC----Fiber coupling FS----Free space |
Coupling type：
DC---DC Coupling |
Gain type:
Null-- Normal gain H--High gain requirement |
Note:
1,10 M, 80MHz, 200MHz, 350MHz and 400 MHZ bandwidth detectors support operating bands A and B; Coupling Type Both AC and DC coupling are optional.
2, 1GHz, 1.6GHz, support working bands A1 and A2; Coupling type Only AC coupling is supported.
3, the gain is adjustable (150MHz) to support the working band A and B; Coupling Type Both AC and DC coupling are optional.
4, example, ROF-BPR-350M-A-FC-AC: 350MHz fixed gain balanced probe module, operating wavelength 1550nm(850-1650nm), AC coupled output.
* please contact our seller if you have special requirements
