ROF Mini high gain balanced optical detection module OCT system Balanced Photodetector

Short Description:

ROF -BPR series of balanced light detection module (balanced photodetector)integrates two matching photodiode and an ultra-low noise transimpedance amplifier, effectively reducing the laser noise and common mode noise, improving the system’s noise ratio, having a variety of spectral response optional , Low noise, high gain, easy to use and so on, Mainly being used for spectroscopy, heterodyne detection, optical delay measurement, optical coherence tomography and other fields.

The mini balanced detection module optimized for OCT systems in ophthalmology has high gain and low noise characteristics, high common-mode rejection ratio and high output voltage amplitude (~12V) through wavelength optimization. It has been used in batch applications in medical OCT devices, and the detector can also be optimized for 1310nm and 1550nm wavelengths.


Product Detail

Rofea Optoelectronics offer Optical and photonics Electro-optic modulators products

Product Tags

Feature

Typical wavelength: 850/1064/1310/1550nm
3dB bandwidth: 10MHz
High common-mode rejection ratio: > 25dB
High gain: 150×103V/W

Mini high gain balanced optical detection module OCT system Balanced Photodetector High Sensitivity Photodetector Si Photodetector

Application

⚫Heterodyne detection
⚫Optical delay measurement
⚫Optical fiber sensing system
⚫(OCT)

Parameters

Performance parameters

Model number

ROF-BPR-10M-A-FC-AC

ROF-BPR-10M-B-FC-AC

Spectral response range

850~1650nm

400~1100nm

Typical wavelength

1310nm/1550nm

850nm

responsivity

0.95A/W@1550nm

0.5A/W@850nm

3dB bandwidth

10K-10MHz

10K-10MHz

Common-mode rejection ratio CMRR

>25dB

>25dB

Gain @RF output

300×103V/W

150×103V/W

Noise voltage (RMS)

15mVRMS

15mVRMS

Saturated Optical Power (CW)

60mW

110mW

Maximum output amplitude

12Vpp

12Vpp

Damaged optical power

10mW

Operating temperature range

-20~+70

Operating voltage

DC 12V

Working current

40mA

Input connector

FC

Output connector

SMA

Output impedance

50 ohms

Output coupling mode

AC coupling (DC optional)

Overall dimensions (mm)

47mm×40mm×23mm

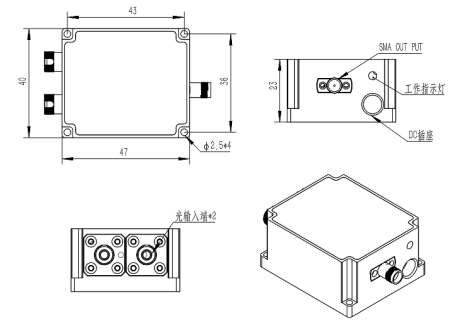

Dimensions(mm)

Information

Ordering information

ROF

XXX

XX

X

XX

XX

X

  BPR-- Fixed gain balanced detector

GBPR-- Gain adjustable balance detector

-3dB bandwidth

10M---10MHz

80M---80MHz

200M---200MHz

350M---350MHz

400M---400MHz

1G---1GHz

1.6G---1.6GHz



Operating wavelength

A---850~1650nm

(1550nm test)

B---320~1000nm

(850nm test)

A1---900~1400nm

(1064nm test

A2---1200~1700nm

(1310nm or 1550nm test)

Input type:

FC----Fiber coupling

FS----Free space

Coupling type

DC---DC Coupling
AC---AC Coupling

Gain type:

Null-- Normal gain

H--High gain requirement

Note:

1,10 M, 80MHz, 200MHz, 350MHz and 400 MHZ bandwidth detectors support operating bands A and B; Coupling Type Both AC and DC coupling are optional.

2, 1GHz, 1.6GHz, support working bands A1 and A2; Coupling type Only AC coupling is supported.

3, the gain is adjustable (150MHz) to support the working band A and B; Coupling Type Both AC and DC coupling are optional.

4, example, ROF-BPR-350M-A-FC-AC: 350MHz fixed gain balanced probe module, operating wavelength 1550nm(850-1650nm), AC coupled output.

* please contact our seller if you have special requirements
