ROF polarization modulator Three ring fiber polarization controllers
Specifications
|
Parameter |
Value |
| Ring leaf material |
Black plastic steel |
| Number of rings |
three |
| Ring diameter |
2.2 inches (56 millimeters) |
| Ring leaf rotation |
±117.5° |
| size |
273.2x25.5x93mm (length x width x height) |
| Fiber optic |
SMF-28-J9 |
| Working wavelength range,a |
1260 - 1625nm |
| Design wavelength,b |
1310nm and 1550nm |
| Mode field diameter |
9.2 ± 0.4µm@1310nm 10.4 ± 0.5µm @1550nm |
| Coating diameter |
125 ± 0.7µm |
| Coating diameter |
242 ± 5µm |
| numerical aperture |
0.14 |
| interlayer |
Ø 9000 µm sealed buffer |
| Loop configuration,c |
3-6-3 |
| Connector |
FC/APC |
| Bending loss |
≤0.1 dB |
Note:
a.Impedance varies with wavelength;
b. The pre installed fiber optic equipment has been optimized for this wavelength;
c. Polarization controller for pre installed optical fibers.

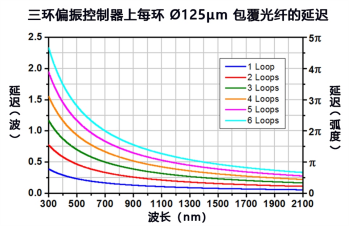

Delay wavelength relationship diagram

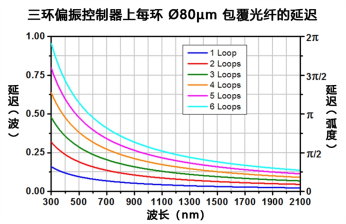

The above figure shows the test results of the three ring polarization controller on Ø 80 µm and Ø 125 µm coated optical fibers, with a controller loop diameter of 56mm. A larger ring diameter is very suitable for optical fibers with high bending losses.
