Rof-EDFA C band High power output fiber amplifier Optical Amplifier C Band

Short Description:

Based on the principle of laser amplification of optical signal in erbium-doped fiber, C-band high-power bioferbium-maintaining fiber amplifier adopts a unique multi-stage optical amplification design and a reliable high-power laser cooling process to achieve high-power bioferbium-maintaining laser output at 1535~1565nm wavelength. It has the advantages of high power, high extinction ratio and low noise, and can be used in optical fiber communication, laser radar and so on.

Send email to us DOWNLOAD

Product Detail

Rofea Optoelectronics offer Optical and photonics Electro-optic modulators products

Product Tags

Feature

High output power (up to 10 watts)

High gain coefficient

High polarization extinction ratio

Electro-Optic Amplifiers Adjusting Optical Delay Broadband Amplifier EDFA Edfa Amplifier Erbium Doped Fiber Amplifier Fiber Delay Module MODL Fiber Delay Module ODL Fiber Delay Module Optical Amplifier Optical Delay Optical Delay Module Optical Signal Amplifier Pulse Amplifier Pulse Modulated Amplifier Pulsed Fiber Amplifier RF Amplifier Semiconductor Laser Amplifier Semiconductor Optical Amplifier Wideband Amplifier YDFA Amplifier

Application

Optical fiber communication

Optical fiber sensing

Laser radar

Parameters

Optical index	Unit	Typical Value	Remarks
Wavelength range	nm	1535~1565	Other wavelengths can be customized
Input power	dBm	-6~+10
Saturation output power	dBm	27/30/33/35/37/40	@0dBm Enter
Output power adjustable range	-	10%~100%
Noise index	dB	<6.0	@0dBm Enter
Polarization extinction ratio	dB	23(Type)，20(Min)
Input/output isolation	dB	>35
Optical power monitoring	-	Input optical power monitoring, output optical power monitoring
Pigtail type	-	PM1550 maintains bias
Pigtail connector type	-	FC/APC	Only for power testing
Working mode		Automatic Current Control (ACC)/ Automatic Power Control (APC)

Electrical and environmental parameters		Table type	module
Control mode		key	RS232 Serial port communication
Communication interface		optional	DB9 Female
Power supply		100~240V AC,<150W	12V DC, <60W
dimension	27/30/33 dBm	260(W)×320(D)×120(H)mm	125(W)×150(D)×30(H)mm
	35/37/40 dBm	360(W)×350(D)×120(H)mm	139(W)×235(D)×70(H)mm
Operating temperature range		-5~+35°C
Operating humidity range		0~70%

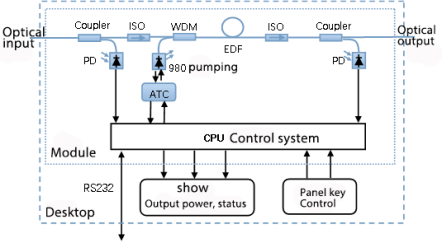

Principle and structure diagram

Product list

Model	Description	parameter
ROF-EDFA-P	Ordinary power output	17/20/23dBm output
ROF-EDFA-HP	High power output	30dBm/33dBm/37dBm output
ROF-EDFA-A	Front-end power amplification	-35dBm/-40dBm/-45dBm input
ROF-YDFA	Ytterbium-doped fiber amplifier	1064nm, The highest 33dBm output

Ordering information

Ordering information/model number

EYDFA

Operating wavelength

Amplifier type

Output power(dBm)

Fiber type

Encapsulation form

C= C-band

HP-BA

= High power

BA amplifier

27/30/33/35/37/40

PM= polarization-maintaining fiber

M= module

B= table
