Technology application of electro-optic modulator
An Electro-optic modulator（EOM modulator） is a signal control element that uses the electro-optic effect to modulate a light beam. Its working principle is generally achieved through the Pockels effect (Pockels effect, namely Pockels effect), which takes advantage of the phenomenon that the refractive index of nonlinear optical materials changes under the action of electric fields.

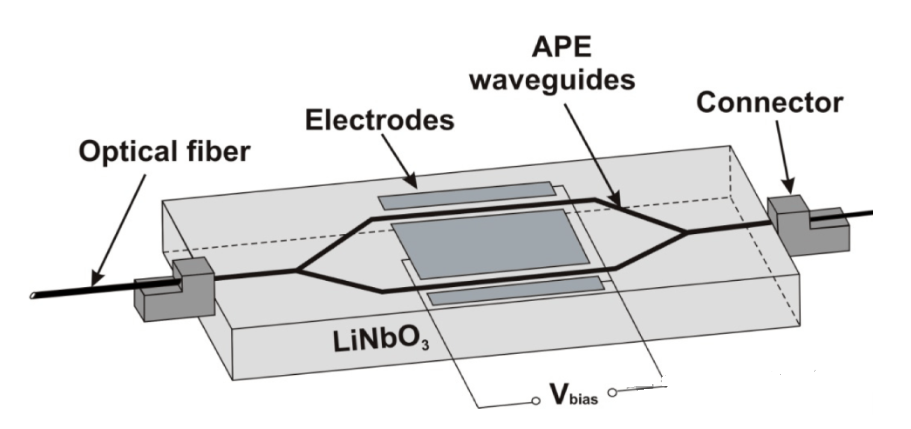

The basic structure of the electro-optic modulator usually includes a crystal (Pockels crystal) with an electro-optical effect, and the common material is lithium niobate (LiNbO₃). The voltage required to induce a phase change is called a Half-wave voltage. For Pockels crystals, hundreds or even thousands of volts are typically required, hence the need for high-voltage amplifiers. The appropriate electronic circuit can switch such a high voltage in a few nanoseconds, allowing EOM to be used as a fast optical switch; Due to the capacitive nature of Pockels crystals, these drivers need to provide a considerable amount of current (in the case of fast switching or modulation, the capacitance should be minimized to reduce energy loss). In other cases, such as when only small amplitude or phase modulation is required, only a small voltage is required for modulation. Other nonlinear crystal materials used in electro-optical modulators (EOM modulator) include potassium titanate (KTP), beta-barium borate (BBO, suitable for higher average power and/or higher switching frequencies), lithium tantalate (LiTaO3), and ammonium phosphate (NH4H2PO4, ADP, with specific electro-optical properties).
Electro-optic modulators（EO modulator） show important application potential in a number of high-tech fields:
1. Optical fiber communication: In modern telecommunications networks, electro-optical modulators（EO modulator） are used to modulate optical signals, ensuring efficient and reliable data transmission over long distances. By precisely controlling the phase or amplitude of light, high-speed and large-capacity information transmission can be achieved.
2. Precision spectroscopy: The electro-optical modulator modulates the light source in the spectrometer to improve the measurement accuracy. By rapidly modulating the frequency or phase of the optical signal, the analysis and identification of complex chemical components can be supported, and the resolution and sensitivity of spectral measurement can be improved.
3. High-performance optical data processing: electro-optical modulator in the optical computing and data processing system, through real-time modulation of optical signals to improve data processing speed and flexibility. With the fast response characteristic of EOM, high-speed and low-latency optical data processing and transmission can be realized.
4. Laser technology: The electro-optic modulator can control the phase and amplitude of the laser beam, providing support for accurate imaging, laser processing and other applications. By precisely modulating the parameters of the laser beam, high quality laser processing can be achieved.
