Light control, optical modulation new ideas.

Recently, a team of researchers from the United States and Canada published an innovative study announcing that they successfully demonstrated that a laser beam can produce shadows like a solid object under certain conditions. This research challenges the understanding of traditional shadow concepts and opens up new possibilities for laser control technology.

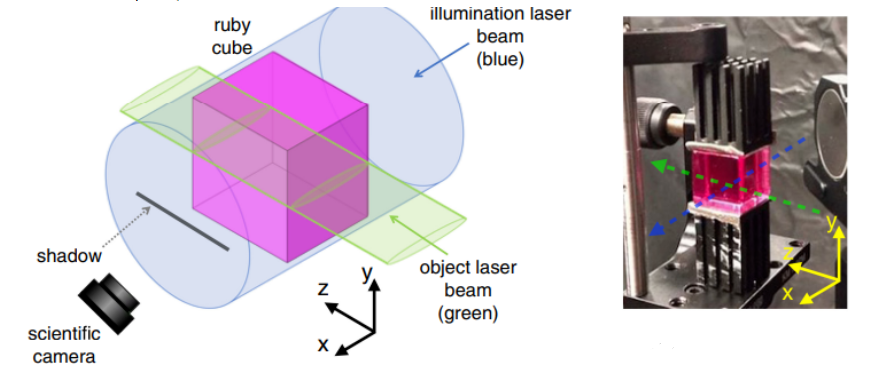

Traditionally, shadows are usually created by opaque objects blocking the light source, and light can usually pass through other beams without obstacles, without interfering with each other. However, scientists have found that under certain conditions, the laser beam itself can act as a “solid object”, blocking another beam of light and thus casting a shadow in space. This phenomenon is thanks to the introduction of a nonlinear optical process that allows one beam of light to interact with another through the intensity dependence of the material, thereby affecting its propagation path and creating a shadow effect. In the experiment, the researchers used a high-powered green laser beam to pass through a ruby crystal while shining a blue laser beam from the side. When the green laser enters the ruby, it locally changes the response of the material to blue light, making the green laser beam act like a solid object, blocking the blue light. This interaction causes a dark area in the blue light, the shadow area of the green laser beam.

This “laser shadow” effect is the result of nonlinear absorption within the ruby crystal. Specifically, the green laser enhances the optical absorption of blue light, creating a region of lower brightness within the illuminated region, creating a visible shadow. This shadow can not only be directly observed by the naked eye, but also its shape and position can be consistent with the position and shape of the laser beam, meeting all the conditions of the traditional shadow. The research team conducted an in-depth study of this phenomenon and measured the contrast of the shadows, which showed that the maximum contrast of the shadows reached about 22%, similar to the contrast of the shadows cast by trees in the sun. By establishing a theoretical model, the researchers verified that the model can accurately predict the change of shadow contrast, which lays a foundation for further application of the technology. From a technical point of view, this discovery has potential applications. By controlling the transmission intensity of one laser beam to another, this technology can be applied to optical switching, precision light control and high-power laser transmission. This research provides a new direction for exploring the interaction between light and light, and is expected to promote the further development of optical technology.
