Rof semiconductor laser 1550nm Narrow linewidth frequency stabilization laser module
Feature
Line width: 2KHz-10KHz (customizable)
Optical power: 10mW-30mW (limited by line width, can be customized)
VRIN noise: -150dB/ Hz@100KHz
Application
optical fiber sensing and detection systems (DTS, DVS, DAS, etc.)
Parameters
|
Parameter |
Min |
Typ |
Max |
Unit |
Remarks |
|
Wave length |
1530 |
1550 |
1570 |
nm |
customizable |
|
Output optical power |
|
10 |
30 |
mW |
customizable |
|
Relative intensity noise |
|
-150 |
|
dB/Hz |
@100kHz |
|
Edge mode rejection ratio |
60 |
60 |
|
dB |
|
|
Polarization extinction ratio |
20 |
|
|
dB |
|
|
Power stability |
|
±2% |
|
|
-20°C~+70°C |
|
Wavelength stability |
|
±15 |
|
pm |
-20°C~+70°C |
|
Short-time drift of light frequency |
|
0.1 |
1 |
MHz/s |
|
|
Light frequency shifts over long periods of time |
|
±38 |
|
MHz |
12h @25±2°C |
|
Working current |
|
400 |
2000 |
mA |
|
|
Operating voltage |
4.75 |
5 |
5.25 |
v |
|
|
Operating temperature |
-20 |
|
70 |
°C |
customizable |
|
Storage temperature |
-40 |
|
85 |
°C |
|
|
Storage humidity |
5 |
|
95 |
%RH |
|
|
Optical Fiber/Connector |
Polarization-maintaining (PM) fiber, FC-APC, minimum bending radius 35mm, maximum fiber tension 5N |
|
|
|
|
|
Module size |
Length, width and height 85*47*14mm |
|
|
|
|
|
Module quality |
145g( Cable not included ) |
|
|
|
|
|
ESD grade |
500V |
|
|
|
|
|
Authentication/instruction |
CE、ROHS、WEEE |
|
|
|
|
|
Line width and noise parameters |
|||||
|
Line width & Noise |
Level 1 |
Level 2 |
Level 3 |
Unit |
|
|
Integral line width 1 |
10 |
5 |
3 |
kHz |
|
|
Instantaneous line width 2 |
1.17 |
0.78 |
0.32 |
kHz |
|
|
Optical noise @10Hz |
7E+06 |
1E+06 |
7E+05 |
Hzrms^2/Hz |
|
|
Optical noise @200Hz |
7E+04 |
2E+04 |
6E+03 |
Hzrms^2/Hz |
|
Note 1: The integral linewidth is measured by self-heterodyne non-equilibrium interferometry;
Note 2: The instantaneous line width is Lorentz line width.

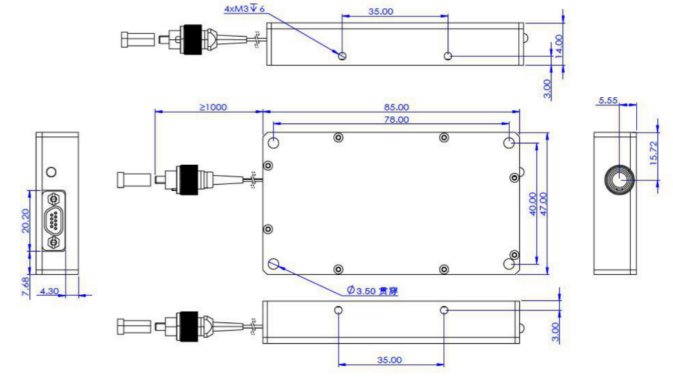

Structure size: Unit (mm)
Port definition:
|
Sequential |
Name |
Features/Specifications |
|
1 |
Vcc |
Input power 5V/3A, low noise (recommended ripple <5mV) |
|
2 |
Tx(output) |
Data output,3.3V TTL(default) |
|
3 |
Rx(input) |
Data entry,3.3VTTL(default) |
|
4 |
Gnd |
electrically |
|
5 |
Gnd |
electrically |
|
6 |
Vcc |
Input power 5V/3A, low noise (recommended ripple <5mV) |
|
7 |
Mod+(input) |
Modulating signal input, no reverse connection (custom function) |
|
8 |
Mod-(input) |
Modulated signal reference, no reverse connection (custom function) |
|
9 |
Enable(input) |
Module restart interface, default low level, high level restart |
