Electro-optic modulator Mini 10~3000MHz Analog Wideband Transceiver Module Optical Transmission modulator

Short Description:

The ROF Series Small analog wideband transceiver module is a low-cost, high-performance analog wideband transceiver with a very wide dynamic range, designed specifically for fiber optic RF applications. A pair of transceivers will create a two-way RF to optical and optical to RF conversion and transmission link that can provide a high spurious-free dynamic range (SFDR), operating at frequencies from10MHz to 3GHz. The standard optical connector is FC/APC for low back reflection applications, and the RF interface is via a 50 ohm SMA connector. The receiver uses a high-performance InGaAs photodiode, the transmitter uses a linear optically isolated FP/DFB laser, and the fiber uses a 9/125 μm single-mode fiber with an operating wavelength of 1.3 or 1.5μm.

Send email to us DOWNLOAD

Product Detail

Rofea Optoelectronics offer Optical and photonics Electro-optic modulators products

Product Tags

Product feature

● 10MHz to 1.2GHz or 10MHz to 3GHz bandwidth

● Tight cast metal case

● High SFDR

● flat frequency response

● 1.3 and/or 1.5μm with isolated FP/DFB

Application

● WiMAX / 4G LTE

● 2G/3G repeater

● Shipborne radio frequency distribution

● satellite earth station

parameters

parameter	symbol	Minimum value	Typical value	Maximum value	unit
Supply voltage	VCC	4.5	5	5.5	Volts
Supply current (total current received and received)	ICC		100		mA
Laser output power			2	4	mW
Transmitter operating wavelength			1310/1550		nm
Receiver operating wavelength			1310/1550		nm
High frequency cut-off	HFC		3000		MHz
Low frequency cutoff	LFC		10		MHz
Frequency response(50– 3000 MHz)			± 1.5	± 2	dB
Input rf power			-15	-5	dBm
input/Output impedance	Z		50		Ohms
Standing wave ratio VSWR			2:1	2.5:1	dB
Rf link gain		0	2	4	dB
Enter the third-order compression point @ 1 GHz	IIP3	33			dB
The gain varies with temperature		± 1.5			dB

Limit parameters

parameter	symbol	Minimum value	Maximum value	unit
Storage temperature	TS	-40	85	℃
Operating temperature	TO	‐25	65	℃
DC Supply voltage	VDP	4.5	5.5	V
Maximum RF input(Tx)			15	dBm
Maximum optical input (Rx)			4	mW

Mounting dimension

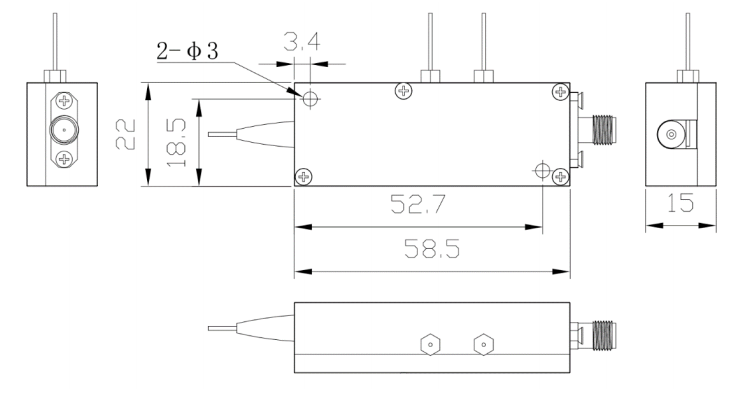

（a）Transmitting module

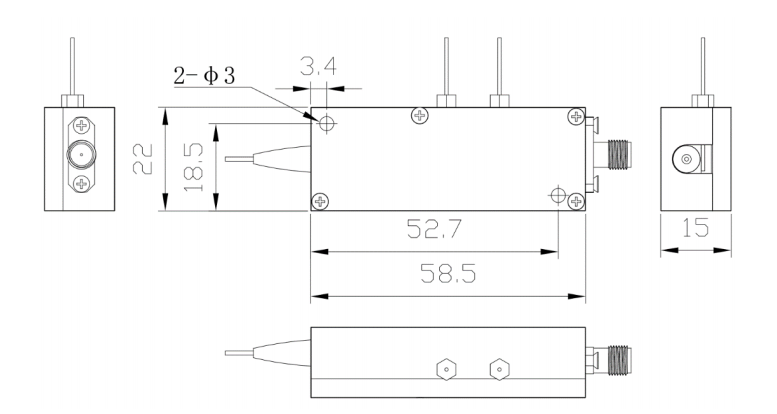

（b）Receiving module

order information

ROF-MINI	XXXXX	XXXX	XXX	XX	X
MINI analog broadband optical transceiver module	Laser type: TO-- without temperature control DFB-- with temperature control	Operating wavelength： 13- 1310nm 15- 1550nm	Modulation bandwidth： 01---10~ 1200MHz 02---10-3000MHz	Connector： FA- --FC/APC SP---User specified	Encapsulation： M---module

* please contact our seller if you have special requirements.
