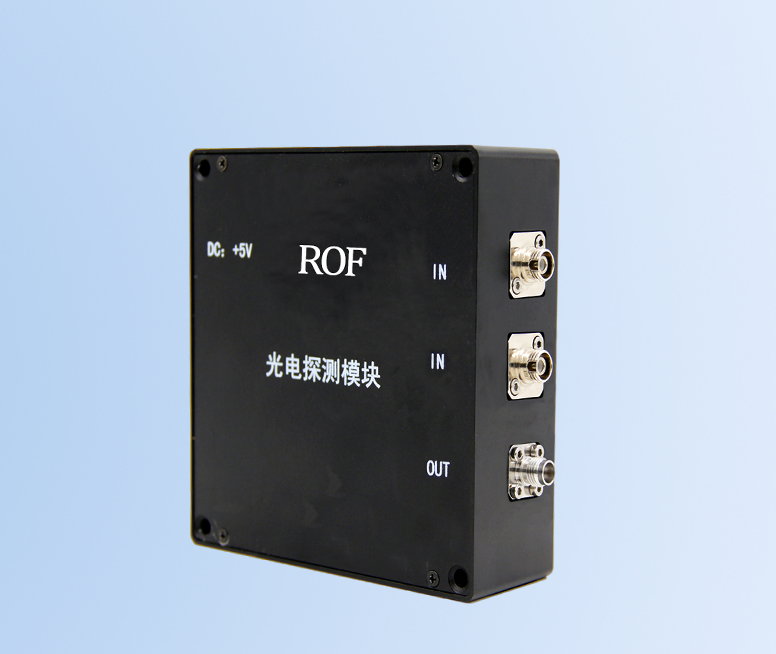

ROF-BPD Series Balanced Photodetector optical detection module High Speed Photodetector unamplified
Feature
Spectral range: 1000~ 1620nm
Up to 40GHz analog bandwidth
Low noise, high common-mode rejection ratio
DC and AC coupling output Optional
Application
High Speed Optical Fiber Communication System (DPSK, DQPSK)
High speed optical fiber sensing system
Parameters
|
parameter |
Symbolic | unit | ROF-BPD-10G | ROF-BPD-25G | ROF-BPD-40G |
| Response wavelength | λ | nm | 1000~ 1620 | 1525~1575 | |
| -3dB bandwidth | BW | GHz | >10 | >25 | >37 |
| Saturated input optical power | Ps | dBm | 10 | ||
| Common mode rejection ratio | CMRR | dB | >20（typ. 25） | >15（typ. 18） | |
| Responsiveness @1550nm | R | A/W | >0.9 | >0.8 | >0.45 |
| Dark current | Id | nA | ＜20 | ＜200（typ. 5） | |
| Polarization dependent loss | PDL | dB | ＜0.6 | ＜0.8（typ. 0.4） | |
| Optical return loss | ORL | dB | >25（typ. 30） | >27 | |
| Power supply | U | V | DC 12V, 1A | ||
| Output coupling mode | AC and DC coupling is optional | ||||
| Output impedance | Z | Ω | 50 | ||
| Output RF connector | -- | SMA（f） | K（f） | V(f) | |
| Input fiber connector | -- | FC/PC 、FC/APC is optional | |||
Limiting condition
|
parameter |
Symbolic | unit | Minimum | Typical | Maximum |
| Balance the input optical power | Pin | mW | 10 | ||
| Operating temperature | Top | ºC | -20 | 70 | |
| Storage temperature | Tst | ºC | -40 | 85 | |
| humidness | RH | % | 5 | 90 |
Curve

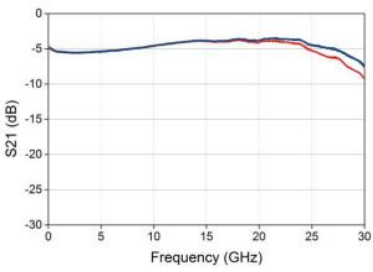

Characteristic curve Detector two-way (positive and negative) frequency response curve
ROF-BPD-10G
ROF-BPD-25G

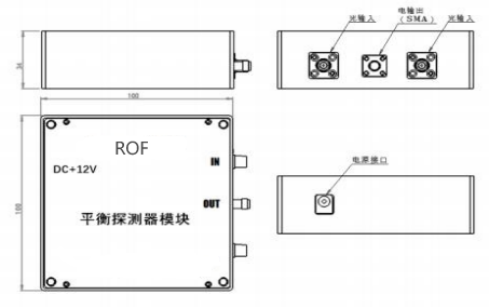

Package size（mm）

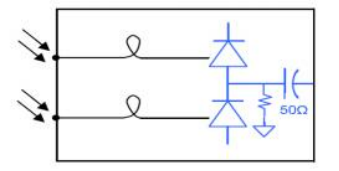

Working principle
Information
Ordering information
| PT | XX | XX | XX |
| Probe module type：
BPD—Balanced Photodiode |
Operating bandwidth：
10--- 10GHz 25---25GHz 40---40GHz |
Pigtail type:
SM---- single-mode optical fiber |
Joint type：
FP---FC/PC FA---FC/APC |
* please contact our seller if you have special requirements
