Rof EOM modulator 40GHz Phase Modulator thin film lithium niobate modulator
Feature
■ RF bandwidth up to 40 GHz
■ Half wave voltage low to 3 V
■ Insertion loss as low as 4.5dB
■ Small device size
Parameter
|
Category |
Argument |
Sym | Uni | Aointer | |
|
Optical performance (@25°C)
|
Operating wavelength (*) |
λ | nm | ~1550 | |
|
Optical return loss
|
ORL | dB | ≤ -27 | ||
|
Optical insertion loss (*) |
IL | dB | MAX：5.5
Typ：4.5 |
||
|
Electrical properties (@25°C)
|
3 dB electro-optical bandwidth (from 2 GHz |
S21 |
GHz |
X1: 2 | X1: 4 |
| MIN：18
Typ：20 |
MIN：36
Typ：40 |
||||
|
Rf half wave voltage (@50 kHz)
|
Vπ | V | MAX：3.5
Typ：3.0 |
||
|
Rf return loss (2 GHz to 40 GHz)
|
S11 | dB | ≤ -10 | ||
|
Working condition
|
Operating temperature |
TO | °C | -20~70 | |
* customizable
Damage threshold
|
Argument |
Sym | Selectable | MIN | MAX | Uni |
|
Rf input power |
Sin | X2: 4 | - | 18 | dBm |
| X2: 5 | - | 29 | |||
|
Rf input swing voltage |
Vpp | X2: 4 | -2.5 | +2.5 | V |
| X2: 5 | -8.9 | +8.9 | |||
|
Rf input RMS voltage |
Vrms | X2: 4 | - | 1.78 | V |
| X2: 5 | - | 6.30 | |||
|
Storage temperature |
Pin | - | - | 20 | dBm |
|
Optical input power |
Ts | - | -40 | 85 | ℃ |
|
Relative humidity (no condensation) |
RH | - | 5 | 90 | % |
If the device exceeds the maximum damage threshold, it will cause irreversible damage to the device, and this type of device damage is not covered by the maintenance service.

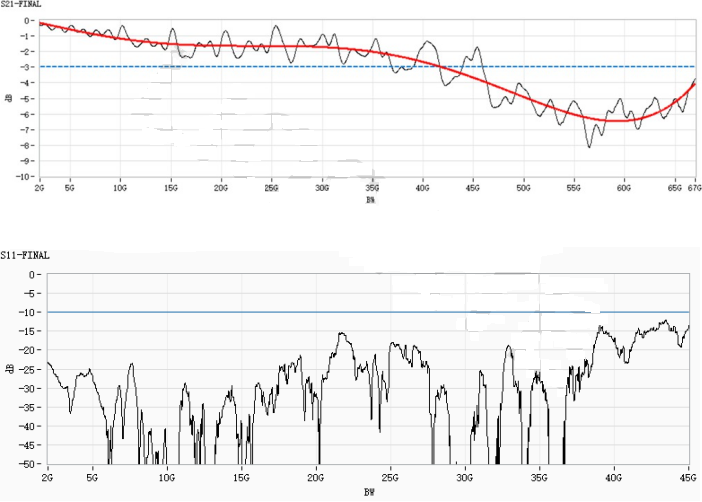

S21 test sample (40 GHz typical value)
S21&S11
Order information
Thin film lithium niobate 20 GHz/40 GHz phase modulator
| selectable | Description | selectable |
| X1 | 3 dB electro-optical bandwidth | 2 or 4 |
| X2 | Maximum RF input power | 4 or 5
|
