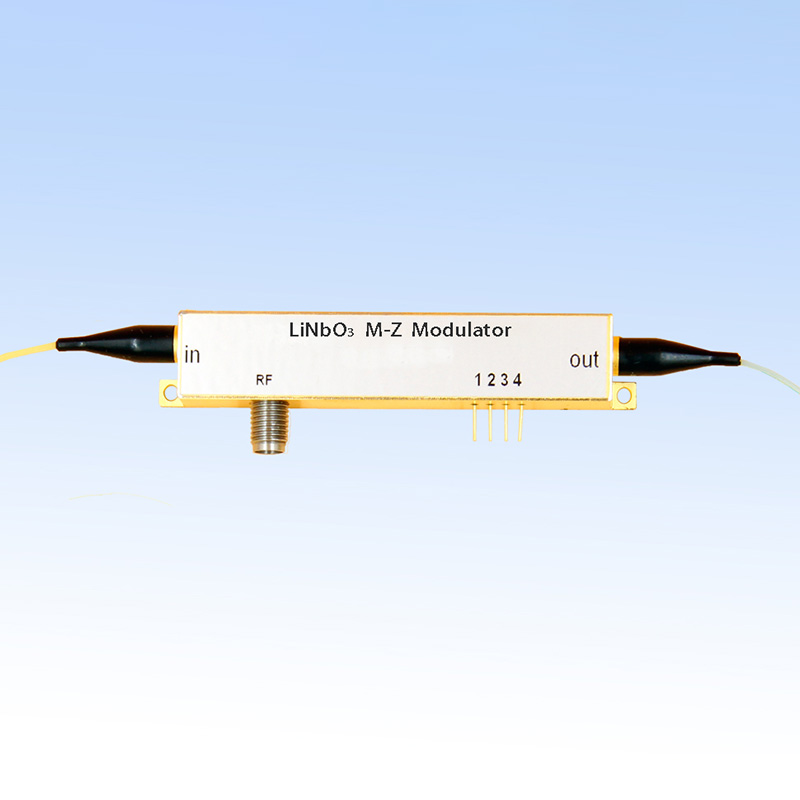

Rof Electro Optical Modulator 1550nm AM Series High Extinction Ratio Intensity Modulator
Feature
⚫ The extinction ratio is greater than 40dB
⚫ Low insertion loss
⚫ High modulation bandwidth
⚫ Low half wave voltage
Application
⚫ Optical pulse generator
⚫ Brillouin sensing system
⚫ Laser radar
Performance
| Parameter | Symbol | Min | Typ | Max | Unit | |
| Optical parameters | ||||||
| Operating wavelength | 入 | 1525 | 1565 | nm | ||
| Insertion loss | IL | 4 | 5 | dB | ||
| Optical return loss | ORL | -45 | dB | |||
| Switch extinction ratio@DC | ER@DC | 35 | 40 | 50 | dB | |
| Dynamic extinction ratio | Panda PM | |||||
| Optical fiber | Input port | Panda PM or SMF-28 | ||||
| Fiber interface | FC/PC 、FC/APC Or user to specify | |||||
| Electrical parameters | ||||||
| Operating bandwidth (-3dB) | S21 | 10 | 12 | GHz | ||
|
Half-wave |
RF | Vπ@50KHz | 5 | V | ||
| Bias | Vπ@Bias | 7 | V | |||
| Electrical return loss | S11 | - 12 | - 10 | dB | ||
|
Input impedance |
RF | ZRF | 50 | |||
| Bias | ZBIAS | 10000 | ||||
| Operating bandwidth (-3dB) | SMA(f) | |||||
Limit Conditions
| Parameter | Symbol | Min | Typ | Max | Parameter |
| Input optical power | Pin,Max | dBm | 20 | ||
| Input RF power | dBm | 28 | |||
| Bias voltage | Vbias | V | -20 | 20 | |
| Operating temperature | Top | ºC | - 10 | 60 | |
| Storage temperature | Tst | ºC | -40 | 85 | |
| Humidity | RH | % | 5 | 90 |
Characteristic

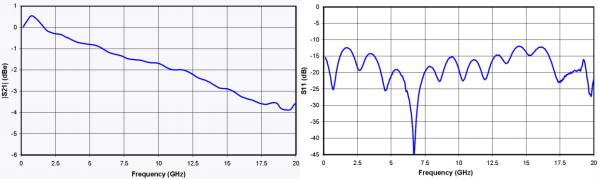

S11&S21Curve

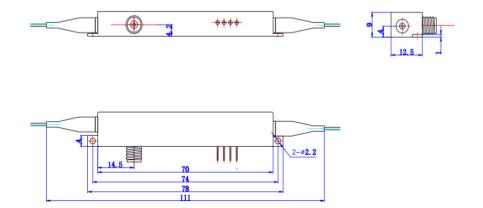

Mechanical Diagram(mm)
Order Information
| ROF | AM | HER | XX | XX | XX | XX |
| Intensity modulator | High extinction ratio | Wavelength： 15--- 1550nm | Bandwidth： 2.5---2.5GHz 10G--- 10GHz 20G--- 18GHz | Optical fiber：
PP---PMF-PMF PS---PMF-SMF |
Facet：
FA---FC/APC FP---FC/PC SP---User's customization |
*please contact our sales if you have special requirements.
