Rof Electro-Optic Amplifiers optical amplification butterfly semiconductor optical amplifier butterfly SOA
Feature
High gain
Low power consumption
Low polarization dependent loss
High extinction ratio
Supports temperature monitoring and TEC thermoelectric control
Application
Production and performance testing of optical fiber devices
Small signal power amplification
Laboratory research field
Optical fiber communication system
Parameters
|
Parameter |
Working condition |
Unit |
Min |
Typ |
Max |
|
Operating wavelength range |
|
nm |
1490 |
|
1590 |
|
bandwidth |
@-3dB |
nm |
55 |
|
60 |
|
Saturated optical power |
If=250mA |
dBm |
12 |
|
15 |
|
Small-signal gain |
If=250mA Pin=-25dBm |
dB |
25 |
|
30 |
|
Saturation output gain |
If=250mA |
dB |
12 |
|
|
|
Working current |
|
mA |
|
250 |
400 |
|
Forward voltage |
|
V |
|
|
1.8 |
|
Extinction ratio |
If=250mA/If=-0.4mA Pin=0dBm |
dB |
|
50 |
|
|
TEC current |
|
A |
|
|
1.8 |
|
TEC voltage |
|
V |
|
|
3.4 |
|
Polarization dependent gain |
|
dB |
|
1.5 |
2 |
|
Thermistor resistance |
T=25℃ |
KΩ |
9.5 |
10 |
10.5 |
|
Thermistor current |
|
mA |
|
|
5 |
|
Operating temperature |
|
℃ |
-10 |
|
70 |
|
Storage temperature |
|
℃ |
|
|
85 |

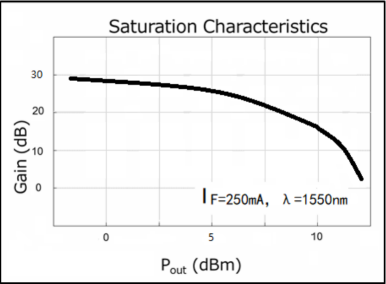

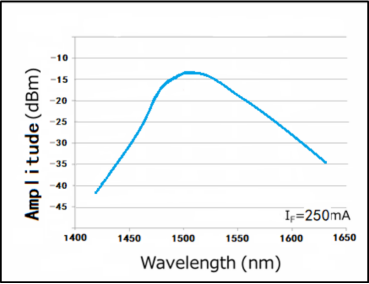

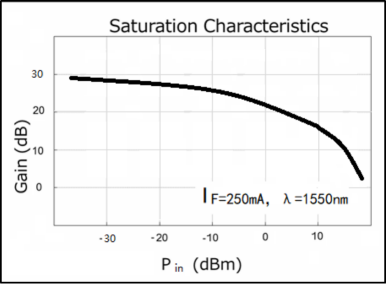

Characteristic curve

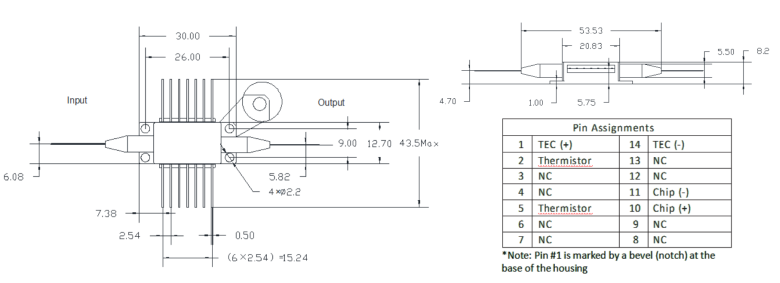

Structural dimension
