Rof Eo modulator Pulse laser source DFB Laser module DFB Semiconductor laser Light source

Short Description:

The DFB laser source uses a high-performance DFB laser chip, uniquely designed ATC and APC circuits, and isolation control to ensure extremely high power and wavelength stability.




Product Detail

Rofea Optoelectronics offer Optical and photonics Electro-optic modulators products

Product Tags

Feature

Pulse width up to 3ns
Multi-wavelength options :850, 905, 1064, 1310, 1550nm
Pulse width is adjustable
The pulse repetition rate is adjustable
Built-in electrical synchronous electrical signal interface
Internal and external trigger optional
Desktop, module optional
Can be customized according to customer requirements

Application

Laser ranging
Seed light source
Optical fiber sensing
Passive device testing

Parameters

Parameter

Symbol

Min

Typ

Max

Unit

Operating wavelength

l

852/1064/1310/1550

nm

Output optical power

Po

-

13

16

dBm

3dB spectral width

Dl*

0.05

2

3

MHz

SMSR

SMSR

30

45

dB

Relative noise intensity

RIN

-160

-150

dB/Hz

Power stability**

PSS

±0.005

dB/5min

PLS

±0.01

dB/8h

Output isolation

ISO

30

35

dB

Specification

Desktop

Module

Dimensions L x W x H

320×220×90 mm

90×70×18 mm

Power requirements

AC 220V ± 10% 30W

DC +5V GND

Output optical fiber

SMF/PMF

Operating mode

CWinternal modulation ,external signal modulation

Optical connector

FC/PC , FC/APC or user specified

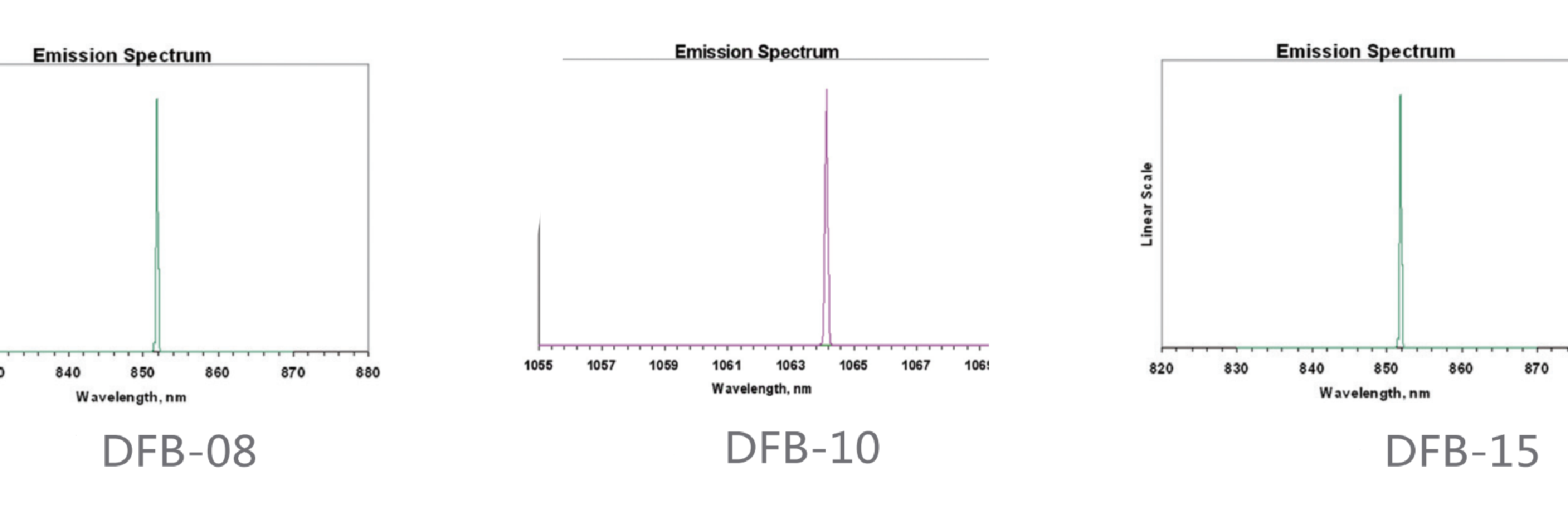

Typical spectrum
