Rof optical fiber sensing DFB laser C-band/L-band Tunable laser light source

Short Description:

ROF-TLS tunable laser light source, the use of high-performance DFB laser, wavelength tuning range >34nm, fixed wavelength interval (1GHz50 GHz100GHz) tunable laser light source, its wavelength internal locking function can ensure that the output light wavelength or frequency on the ITU grid of DWDM channel. It has the characteristics of high output optical power (20mW), narrow line width, high wavelength accuracy and good power stability. It can realize remote control of instruments, mainly used in WDM device testing, optical fiber sensing, PMD and PDL measurement, and optical coherence tomography (OCT).

Send email to us DOWNLOAD

Product Detail

Rofea Optoelectronics offer Optical and photonics Electro-optic modulators products

Product Tags

Feature

wavelength tuning range >34nm
Output power > 20mW
Narrow line width: < 1MHz
The wavelength is locked internally
 Remotely controlled

Application

WDM device test
Optical fiber sensing system
PMD and PDL tests
Optical Coherence Tomography (OCT)

Parameters

Parameter		Symbol	Min	Typ	Max	Unit
Wavelength *	C-band	l	1529		1567	nm
Wavelength *	L-band	l	1563		1607	nm
Wavelength tuning range *	C-band		34	40		nm
Wavelength tuning range *	L-band			40
Wavelength conversion velocity				2		s
Wavelength accuracy			-1.8		1.8	GHz
Tuning step			1	50	100	GHz
Optical output power **		Po	10	13	16	dBm
3dB spectral width		Dl*	0.1	1	3	MHz
Edge mode rejection ratio		SMSR	40	50		dB
Polarization extinction ratio		PEX	20			dB
Relative noise intensity		RIN		-145	-135	dB/Hz
Power stability		PSS			±0.01	dB/5min
Power stability		PLS			±0.02	dB/8h
Output isolation		ISO	30	35		dB
specification			Desk or Module
Overall dimensions L x W x H			320×220×90 mm（Desk） 100×82×30 mm（Module）

Power requirements		AC 220V ±10％（Desk） DC+5V（Module）
Output fiber		PMF
Optical connector		FC/APC

Limiting condition

Parameter	Symbol	Unit	Min	Typ	Max
Operating temperature	Top	ºC	-5		55
Storage temperature	Tst	ºC	-40		85
Humidness	RH	%	5		90

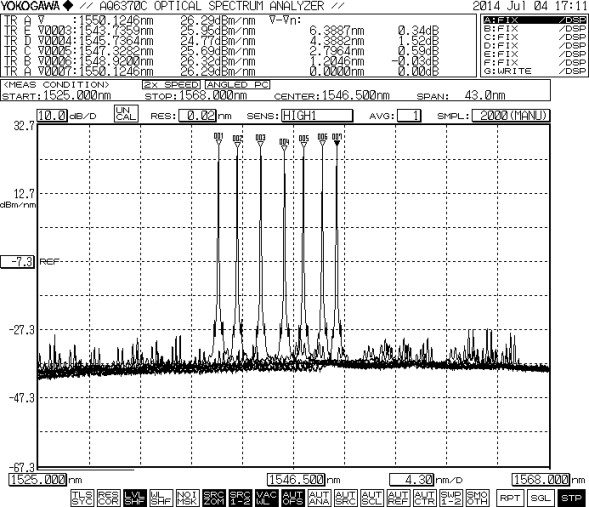

Typical spectrum

FIG. 1 Typical spectrum

Ordering information

ROF

TLS

tunable laser light source

C---C band

L---L band

power：

13---13dBm

16---16dBm

Tuning step：

01---1GHz

50---50GHz

100---100GHz

Optical fiber connector：

FA---FC/APC

Package type：

D---Desk

M---Module

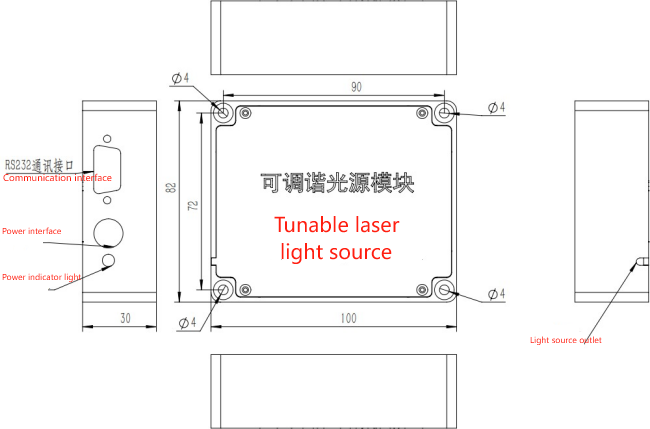

Mechanical Diagram(mm)

Figure 2 Mechanical dimension diagram of tunable light source module
