ROF -BPR Series 200M Balanced Photodetector Light Detection Module Optical Detector

Short Description:

ROF -BPR series of balanced light detection module （balanced photodetector）integrates two matching photodiode and an ultra-low noise transimpedance amplifier, effectively reducing the laser noise and common mode noise, improving the system’s noise ratio, having a variety of spectral response optional , Low noise, high gain, easy to use and so on, Mainly being used for spectroscopy, heterodyne detection, optical delay measurement, optical coherence tomography and other fields.

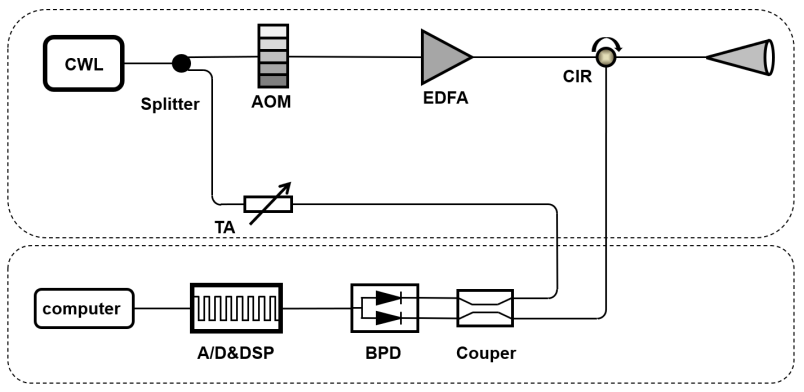

BPR series 200M and 350M high-gain balanced detection modules, with high gain and low noise characteristics, through two PIN tube response optimization to achieve high common-mode rejection ratio and high output voltage amplitude (~3.5V), this detection module can provide different gain and coupling output modes according to customer requirements. It is very suitable for coherent detection systems such as coherent Doppler wind radar.

Send email to us DOWNLOAD

Product Detail

Rofea Optoelectronics offer Optical and photonics Electro-optic modulators products

Product Tags

Feature

Wavelength range: 900-1700nm (400-1100nm optional)

3dB bandwidth: DC-200MHz/350MHz

High common-mode rejection ratio: 30dB

High gain: 38×103V/W (other gains can be customized)

Photodetector Optical Detection Module High Sensitivity Photodetector Optical Detector Photodetector Photodiode Photoelectric Amplifying Detector Polarized Light Detector Ultra Wideband Photodetector、Wide Spectrum Photodetector Amplified Photoelectric Detector Analog Light Detection Module APD Photodetector Balance Detector Laser Photodetector Light Balance Detector Light Detector Linear Photodetectors Multi-Channel Photodetector Multichannel Balanced Photodetector InGaAs Photodetector

Application

⚫Heterodyne detection
⚫Optical delay measurement
⚫Optical fiber sensing system
⚫（OCT）

Parameters

Performance parameters

Model number	KG-BPR-200M-A-FC-H-DC	KG-BPR-200M-A-FC-DC		KG-BPR-350M-A-FC-DC
Spectral response range	900-1700nm	900-1700nm		900-1700nm
Typical wavelength *	1310nm/1550nm	1310nm/1550nm		1310nm/1550nm
responsivity	0.95A/W@1550nm	0.95A/W@1550nm		0.95A/W@1550nm
3dB bandwidth	DC-200MHz	DC-200MHz		DC-350MHz
Common-mode rejection ratio CMRR	>25dB（30dB typ.）	>25dB（30dB typ.）		>25dB （30dB typ.）
Gain @ High resistance state	38×10³V/W	20×10³V/W		14×10³V/W
Noise voltage (RMS)	＜20mV_RMS	＜10mV_RMS		＜10mV_RMS
sensitivity	-26dBm	-33dBm		-33dBm
Saturated Optical Power (CW)	-9dBm	-12dBm		-5dBm
Maximum output amplitude	3.5Vpp	3.5Vpp		3.5Vpp
Damaged optical power	10mW
Operating temperature range	-20~+70 ℃
Operating voltage			DC ±15V
Working current			50mA
Input connector			FC
Output connector			SMA
Output impedance			50 ohms
Output coupling mode			Default DC coupling (AC optional)
Overall dimensions (mm)			78.5mm×71.5mm×20mm

Curve

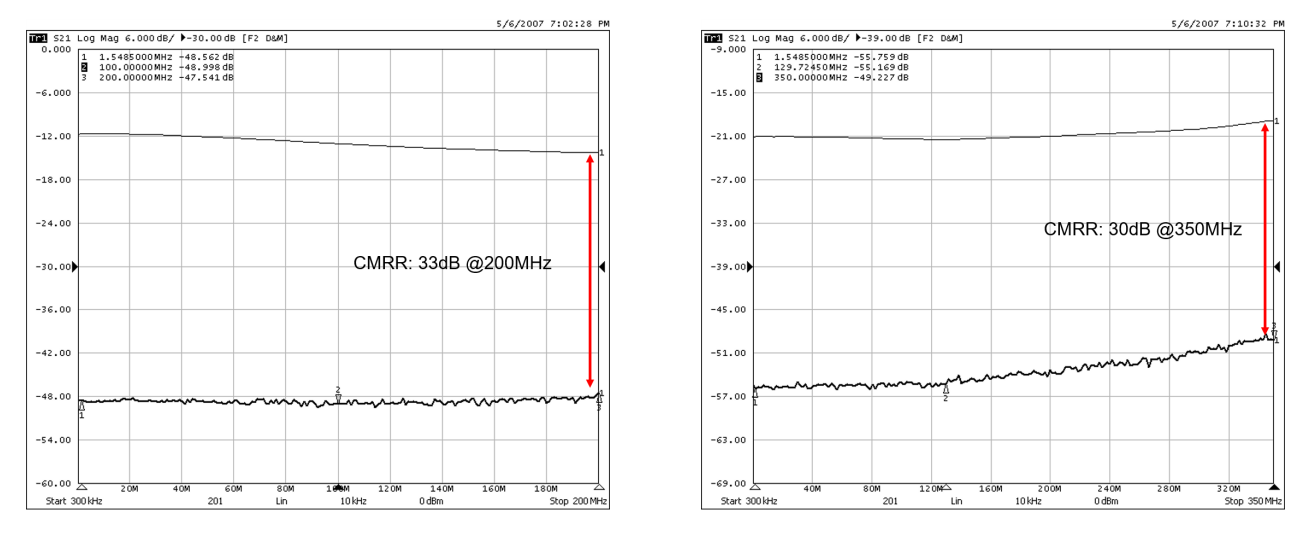

Characteristic curve

Spectral response curve Internal circuit diagram

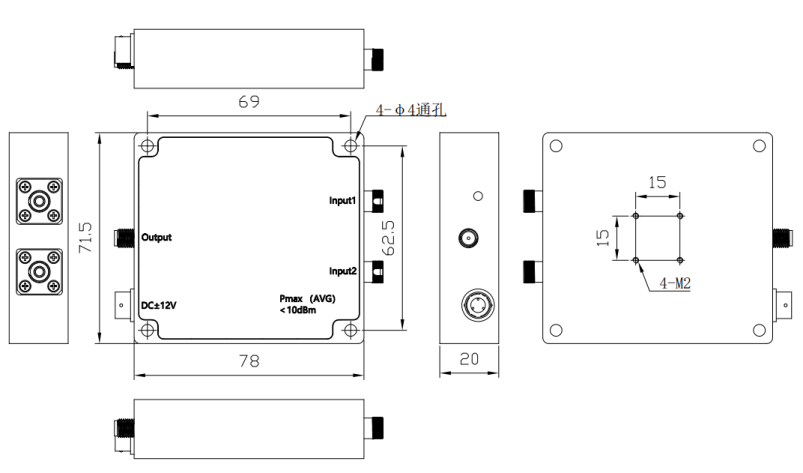

Dimensions（mm）

Information

Ordering information

ROF

XXX

BPR-- Fixed gain balanced detector

GBPR-- Gain adjustable balance detector

-3dB bandwidth：

10M---10MHz

80M---80MHz

200M---200MHz

350M---350MHz

400M---400MHz

1G---1GHz

1.6G---1.6GHz

Operating wavelength：

A---850~1650nm

(1550nm test)

B---320~1000nm

(850nm test)

A1---900~1400nm

(1064nm test）

A2---1200~1700nm

(1310nm or 1550nm test)

Input type:

FC----Fiber coupling

FS----Free space

Coupling type：

DC---DC Coupling
AC---AC Coupling

Gain type:

Null-- Normal gain

H--High gain requirement

Note:

1,10 M, 80MHz, 200MHz, 350MHz and 400 MHZ bandwidth detectors support operating bands A and B; Coupling Type Both AC and DC coupling are optional.

2, 1GHz, 1.6GHz, support working bands A1 and A2; Coupling type Only AC coupling is supported.

3, the gain is adjustable (150MHz) to support the working band A and B; Coupling Type Both AC and DC coupling are optional.

4, example, KG-BPR-350M-A-FC-AC: 350MHz fixed gain balanced probe module, operating wavelength 1550nm(850-1650nm), AC coupled output.

* please contact our seller if you have special requirements
