ROF High Sensitivity APD Photodetector Light Detection Module avalanche photodetector
Feature
Spectral range ：A:850-1650nm，B:400-1000nm
Response frequency up to 1GHz
Low noise and high gain
Optical fiber space coupling input optional
Application
Optical fiber sensing
Biomedical device
Fiber optic gyroscope
Spectral analysis
Parameters

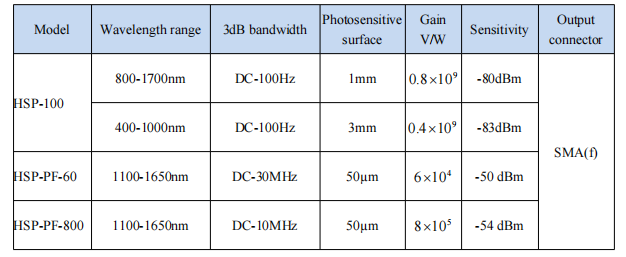

Performance parameters
|
Model |
Wavelength range |
3dB bandwidth |
Photosensitive surface |
Gain V/W |
Sensitivity |
Output connector |
| APR-1G |
800-1700nm |
DC-1GHz |
50µm |
-33dBm |
SMA(f) |
|
|
400-1000nm |
200µm |
-36dBm |
||||
| APR-500M |
800-1700nm |
DC-500MHz |
75µm |
-35 dBm |
||
|
400-1000nm |
200µm |
-38 dBm |
||||
| APR-200M |
800-1700nm |
DC-200MHz |
300µm |
-42 dBm |
||
|
400-1000nm |
1.5mm |
-45 dBm |
limit conditions
| Parameter | Symbol | Unit | Min | Typ | Max |
| Input optical power |
Pin |
mW | 10 | ||
| Operating voltage |
Vop |
V |
4.5 | 6.5 | |
| Operating temperature |
Top |
℃ |
-10 | 60 | |
| Storage temperature |
Tst |
℃ |
-40 | 85 | |
| Humidity |
RH |
% |
5 |
90 |
Curve
Characteristic curve
* please contact our seller if you have special requirements
