Rof Electro Optic Modulator semiconductor laser ASE Broadband Light Source ASE Laser module

Short Description:

The ROF-ASE series wideband light source is based on the principle of spontaneous radiation generated by rare earth doped fiber pumped by semiconductor laser, combined with local optical feedback control technology. The desktop ASE light source has the advantages of high output power, low polarization, high power stability, and good average wavelength stability, which can meet the strict performance requirements of broadband light sources in sensing, testing and imaging research fields.




Product Detail

Rofea Optoelectronics offer Optical and photonics Electro-optic modulators products

Product Tags

Feature

Well power stability
Low degree of polarization output
Intelligent microprocessor control
Well average wavelength stability

Application

Spectral analysis and biomedical imaging
Biomedical imaging
Optical fiber sensing system
Optical gyroscope testing

Parameters

Parameter

Min

Typ

Max

Unit

Operating wavelength

C

1525

-

1565

nm

L

1570

-

1610

C+L

1525

1610

1060

1030

1090

Output power

10/13/17/23

dBm

Power spectral density

-20

-2

dBm

Power stability

15min @ 23℃

2.0

3.0

5.0

%

8h@ 23℃

-

0.01

0.02

dB

3dBspectral width

37

40

42

nm

Spectral flatness

1.5

2

dB

Specification

Desktop

Module

Dimensions L x W x H

320×220×90 mm

90×70×18mm

Power requirement

AC 220V ± 10% 30W

DC +5V GND

Optical fiber type

SMF-28 or PMF

Connector type

FC/PC、FC/APC or user specified

Curve

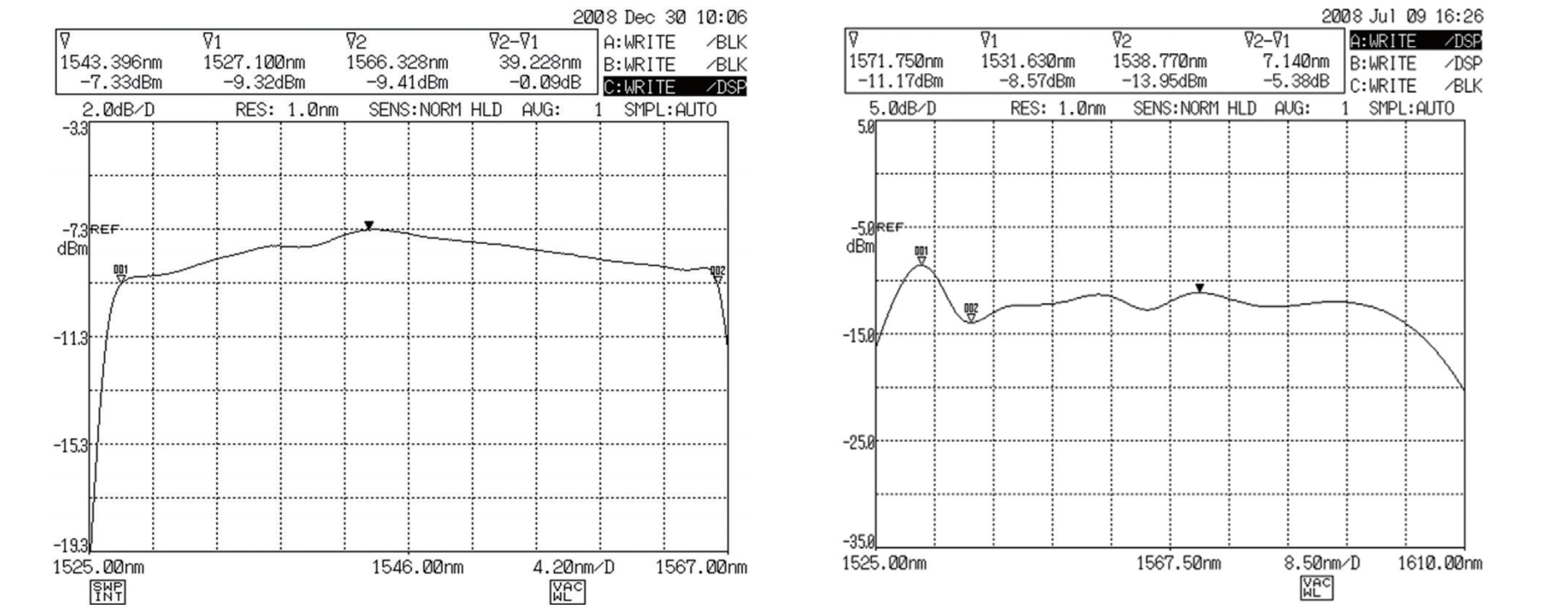

C-band spectrogram(with GFF)                                                              C-band and L-band spectrogram(with GFF)
