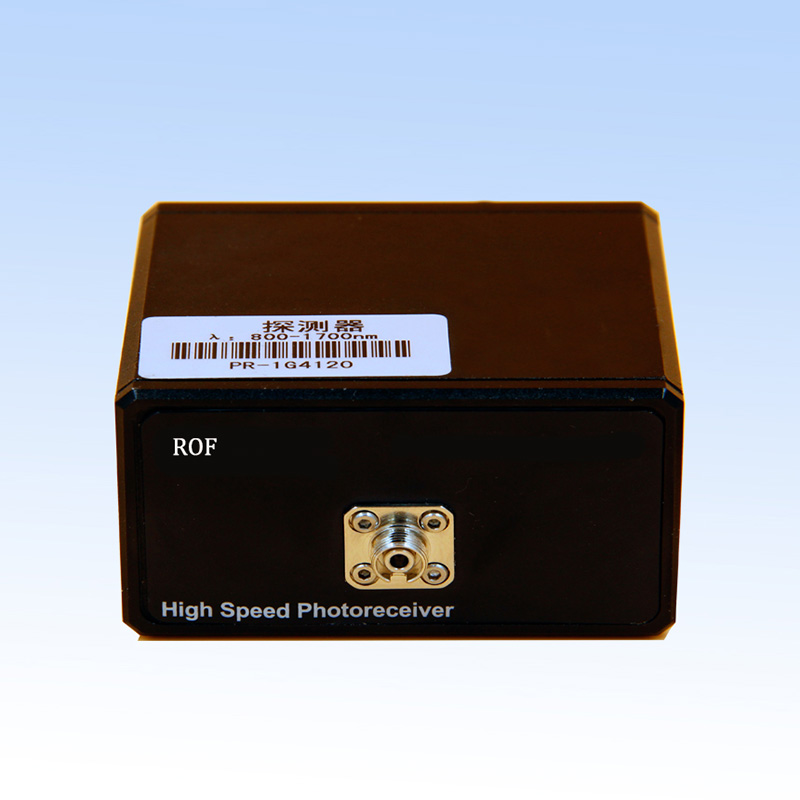

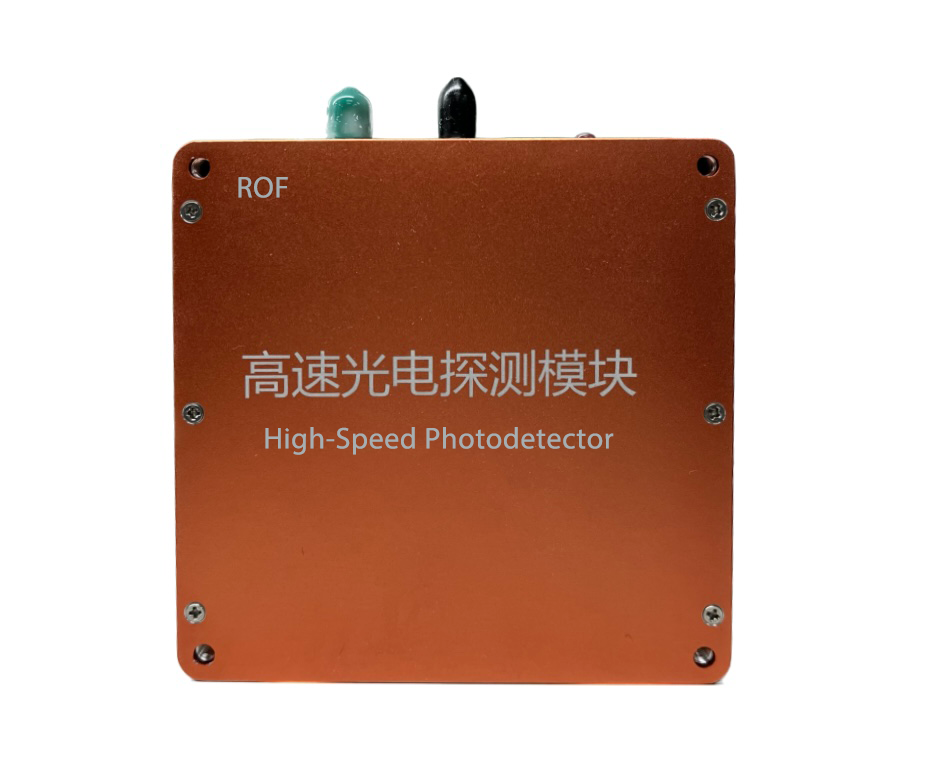

ROF-PR 10GHz High-Speed Photodetector Light Detection Module Optical Detector Amplified Photodetector
Feature
⚫Spectral range：850~1650nm
⚫3dBbandwidth up to 10GHz
⚫Optical fiber coupling output
Application
⚫High-speed optical pulse detection
⚫High -speed optical communication
⚫Microwave link
⚫Brillouin optical fiber sensing system
Parameters
Performance parameters
| Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
Test condition |
| Response wavelength |
nm |
850 |
1650 |
|||
| -3dB Bandwidth |
BW |
GHz |
10 |
|||
| Dark circuit |
Id |
nA |
10 |
25℃ |
||
| Responsiveness |
R |
A/W |
0.8 |
λ=1550nm |
||
| Rise time |
Tr |
ps |
35 |
|||
| Polarization independent loss |
PDL |
dB |
0.2 |
0.6 |
||
| Optical return loss |
ORL |
dB |
-35 |
|||
| Gain |
G |
V/W |
40 |
- |
| Electrical return loss |
S22 |
dB |
-10 | DC-10GHz | ||
| Output impedance |
Z |
50 | ||||
| Operating voltage |
Vop |
V |
DC 5V |
|||
| Dimension |
L x W x H |
mm |
100 x 100 x 34 |
|||
| Input fiber | Single-mode /multimode fiber | |||||
| Fiber connector |
FC/PC、FC/APC |
|||||
| Output connector |
SMA(f) |
|||||
limit conditions
| Parameter | Symbol | Unit | Min | Typ | Max |
| Input optical power |
Pin |
mW | 10 | ||
| Operating voltage |
Vop |
V |
4.5 | 6.5 | |
| Operating temperature |
Top |
℃ |
-10 | 60 | |
| Storage temperature |
Tst |
℃ |
-40 | 85 | |
| Humidity |
RH |
% |
5 |
90 |
Curve
Characteristic curve
Information
Ordering information
| ROF |
PR |
10G |
A |
XX |
XX |
XX |
|
Photodetector |
-3dBbandwidt： 10---10 GHz | Operating wavelength： | SM----single - mode fiberMM | Connector type ：FP ---FC/PC | Coupling method
DC |
|
| 850~1650nm | ----multimode fiber |
FA ---FC/APC |
AC |
* please contact our seller if you have special requirements
